Strong
Enough to Manage A 256 - Door Network...
But
Tame Enough To Handle A Single Door.
Great
Installer Features
|
Designed with the
installer in mind:
-
On-board diagnostics
-
Automatically senses
communication method (direct connect to PC or modem)
-
Auto-Configures RS-485
network biasing; termination and grounding for optimum performance. NO
JUMPER SETTING
-
Quick disconnect terminals
-
Software auto-configures
system components, no data entry required
-
Push-button setting and
LED display of address selection. NO
DIP SWITCHES
|
(Click here to
view a bigger image)
|

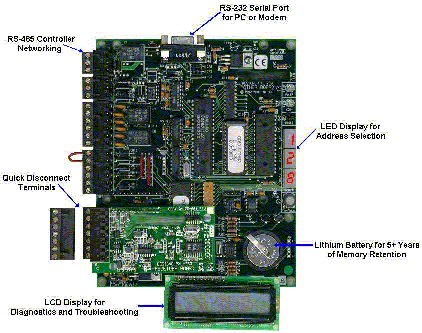

The PXL-250
Tiger Controller is a smart entry controller which contains all the intelligence
and necessary inputs/outputs to manage one door and two readers. In an access
control system, from 1 to 128 PXL-250
controllers can be networked, controlling from 1 to 128 doors. With the addition
of a SB-293 Satellite Board, each PXL-250
can manage a second door, one reader per door, for a possible total 256 doors.
To control and manage the entire
operations, excellent Windows based software DOORS is available. DOORS is most
user friendly and requires only very basic knowledge of Windows!
Standard features include :
Access Control
Inputs and Outputs
- Three inputs
- Door Switch Status
- Request to Exit
- General Purpose Input
- Two Form C Output Relays
Quick Connect Wiring
Connectors
- allows for quick removal of wiring connectors
- makes it easy to change/upgrade either the
wiring or the controller board following the system installation
Electrical Surge Transient
Protection
- Transorbs across all inputs and outputs
(except relay outputs)
- MOV's across all relay outputs
Network Communication
- an RS-232 serial port that automatically
configures itself to communicate directly to a PC or communicate to a PC via
modem
- an RS-485 network communication port capable
of linking up to 128 controllers on a single network up to 4,000 feet long
Automatic Network
Configuration
- automatic configuration of end-of-line
termination for networked controllers
- automatic configuration of network biasing
resistors
- automatic configuration of earth ground to one
point network communications
Access Control Database
Capacity
- a database capacity of more than 10,000 unique
cardholders per controller, or
- with optional Ram expansion, more than 75,000
unique cardholders per controller
- transaction buffers capable of storing more
than 3,500 unique events per controller
Support for the following
Reader Technologies
- ScanProx Proximity Systems
- Weigand Compatible (26-Bit)
- Bar Code
- Biometrics (Fingerprints, Hand Geometry, etc.)
- Keypad
- Magnetic Stripe
- other Proximity systems
NOTE:
The Weigand Reader must send data according to the
Security Industry Association's Weigand Reader Interface Standard
(document number AC-01D-96). Jaypeetex cannot guarantee the performance or
reliability of Weigand Readers that do not meet these guidelines.
The optional SB-293 Satellite Expansion Board adds
the following features:
- eight additional general purpose inputs and
four additional general purpose Form C output relays
OR
- second door access control (using one reader per door)
- door switch status input
- request to exit input
- door lock output relay
- door alarm output relay
- six general purpose inputs
- two general purpose Form C output relays
The
optional LCD-1 Alpha/Numeric Plug-In Display adds the following feature
- access to built-in system diagnostics to aid
in troubleshooting (highly recommended)
